BARREL PLATING SYSTEMS

PCB Systems Metal Finishing Systems
Printed Circuit Boards Rack Plating
  Barrel Plating
  Platexpress™

Our equipment offerings for BARREL PLATING are the most diverse in the industry!

Unlike competitors with limited product designs, since 1995 we’ve successfully integrated equipment and technology from our long-term Strategic Partners into our designs and systems. With a significantly broader
range of products, we objectively determine the appropriate and cost effective solutions for your particular needs.

BTA has "NO AXE TO GRIND" in the flexible way we approach your Rack System needs and budget.

BTA’s Barrel Plating Equipment Solutions include:

The patented PLATEXPRESS™ System which is unique in it's
   ability to provide a more consistent finish with lower operating costs

The HYBRID System, which utilizes many of the PLATEXPRESS™
   features, but with traditional barrel/hoist orientation

Stainless steel "mini" hoists **
Steel and Stainless Cantilevered (Side-arm) hoists **
Steel and stainless railrider hoists

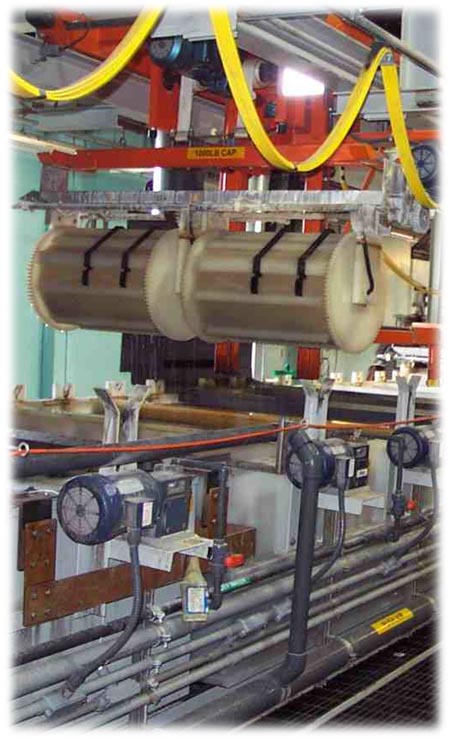

Overhead Cranes for high capacity, double barrels

** Available with Environmental Enclosures

Energy-Conserving Designs are a Specialty
By minimizing losses from heated tanks, and dramatically reducing exhaust cfm (often by more than 80%), we deliver significant savings in recurring heated make-up air and energy consumption, especially in Northern U.S. & Canada.

Water-Conserving “Multi-Rinses”™ reduce floorspace and water consumption by >50%. These have been used for years within U.S. “HYBRID” installations. These lines require only a single rinse station on-line, in lieu of 2 and/or 3 station counterflow rinses, thus shortening the line footprint & number of hoists required.

IN-BARREL DRYING - a time-proven, patented system used for years in the U.S. Unlike conventional, centrifugal drying, more delicate parts need not be dumped into spin baskets for placement inside the dryers. Rather, following final on-line rinse, barrel is conveyed to semi-vacuum dryer stations with special, minimal rotational cycle. The barrel dryers are available with automatic covers, to minimize energy losses.

Integral to the system’s success is state-of-the-art controls
For more than 20 years, we have exclusively utilized AUCOS control systems. All systems are available with:

Flexible, Production-Scheduling/Optimized Controls
Advanced real-time simulation/verification of layout and
   capacities

Optimized concurrent processing of widely varying process
   recipes and dwell times. Unlike less intelligent “dynamic
   scheduling systems”, there is no need for part/fixture
   storage or queue

Superior, in-depth fault diagnostics
Global, modem service (PC front-end & PLC), available 24/7
Extensive part database, enhanced control & traceability
Available in UNIX, LINUX & Windows platforms
High accuracy infra-red & laser hoist positioning systems
